Product Overview
Ultrasonic Smart Water Meter is a new type of water meter that analyzes and processes the flow rate of water by detecting the time difference generated by the change of speed when the ultrasonic sound beam propagates in the water in downstream and countercurrent, and then further calculates the flow rate of water. The starting flow rate is low, the range ratio is wide, the measuring accuracy is high and the work is stable. No internal moving parts, no flow blocking elements, not affected by impurities in the water, long service life. The output communication function is complete to meet all kinds of communication and wireless networking requirements. With excellent small flow detection ability, it can solve the problems of many traditional water meters, and is more suitable for water gradient charging, more suitable for saving and rational use of water resources, and has a broad market and use prospects.
Product Name

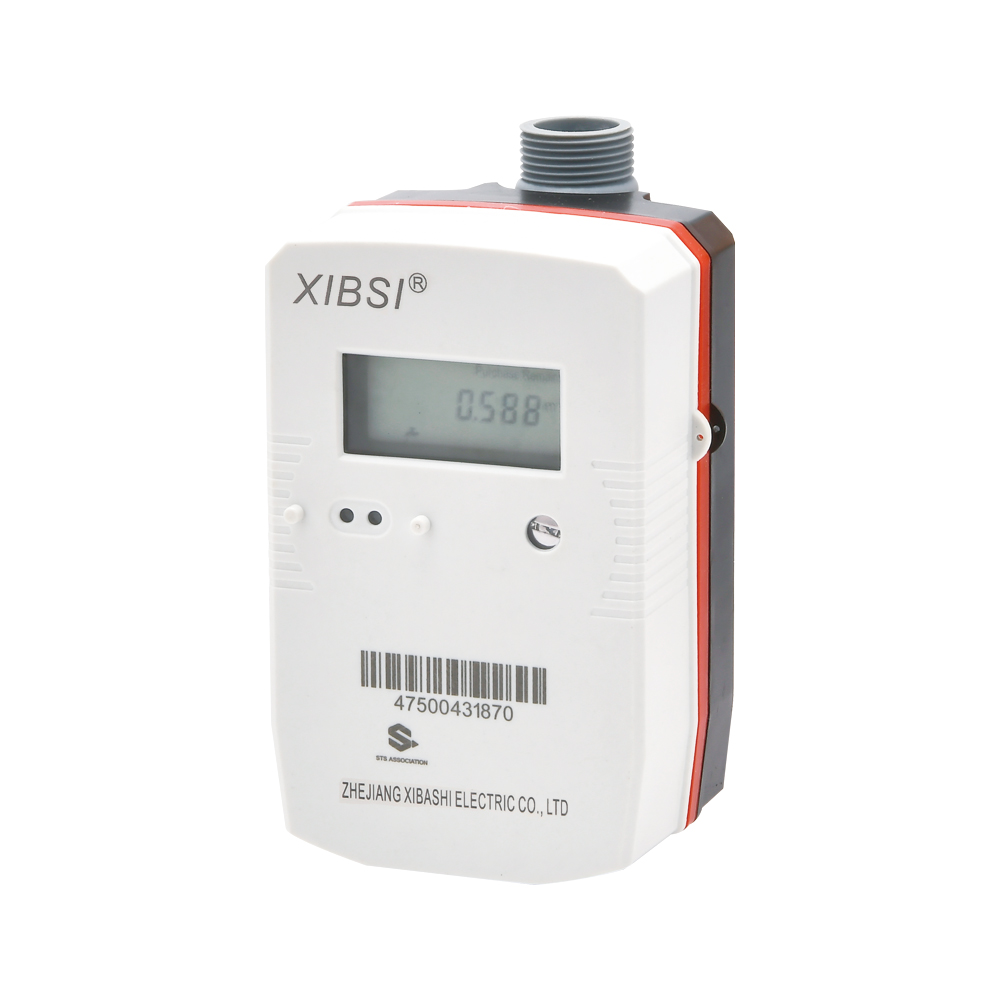

NB-loT valve-controlled ultrasonic water meter
Nominal Diameter(mm)
DN15~DN40
Q3/Q1
250
Pressure loss rating
p63
Measured medium
Water, homogeneous liquids and filling the measured pipe
Accuracy class
Class 2
Maximum allowable working pressure
1.6MPa
Working environment
5°C~+55°C, ≤100%RH
Temperature grade
T30
Upstream flow field sensitivity class
U10
Downstream flow field sensitivity class
D5
Climatic and mechanical environment class
Class B
Electromagnetic compatibility class
E1
Pushbuttons
Magnetic keys
Display
LCD 8-digit number + prompt
Display content
Instantaneous flow rate(m/h) , Accumulated flow rate(m³), screen detection, meter address,
Accumulated working time (h), date (year/month/day), caliber, software version.
Display range
Accumulated flow:0m³~+9999.9999m
Data communication: photoelectric interface
Baud rate 2400bps, based on CJ/T 188 customized protocols
:NB-loT
Modulation mode: NB, frequency band: 850MHZ, using customized protocol based on CJ/T 188.
Power supply
Battery-powered DC3.6V (battery can work continuously for more than 6 years)
Power Consumption
<0.2mW
Protection Grade
IP68
Storage Temperature
-25℃~+55℃
Cable Length
1.0 m
Instrument Installation Location
Water supply line
