Product Overview

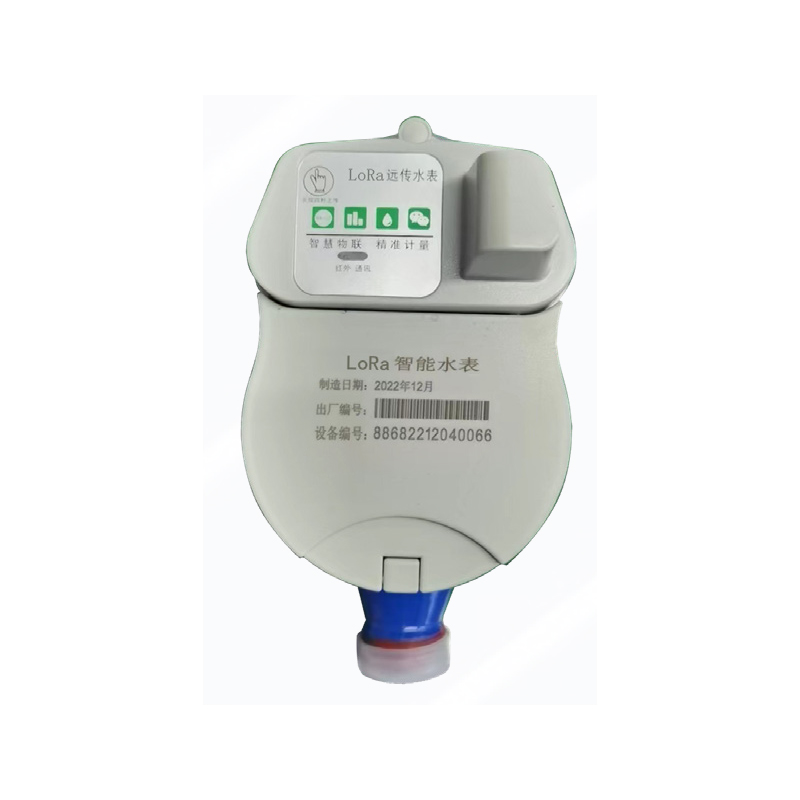

LoRa IoT Wireless Remote Smart Water Meter is used to measure the water flow in the pipeline, equipped with a wireless transmitting device, which transmits the data to the collector through radio waves, thus realizing remote meter reading, flow monitoring and other functions, without complex wiring.
It is equipped with a wireless transmitter, which transmits data to the collector through radio waves, thus realizing remote meter reading, flow monitoring and other functions, without complicated wiring.
The data is uploaded to the collector, and the 4G collector uniformly uploads the data to the master station through the communication between the GPRS module and the master station, and the meter end is normally in a dormant and low-power state.
When the collector sends the meter reading command, the water meter at the specified address will be awakened for data uploading. Meanwhile, it has multiple advantages such as waterproof, moisture-proof, anti-attack, water-stealing, anti-magnetic, anti-interference, good confidentiality and so on.
Multiple advantages, communication protocol "standard CJ/T188-2004".
Product characteristics
1. The built-in module adopts LORA spread spectrum debugging technology, featuring strong anti-interference ability, long transmission distance and low static power consumption.
2. Real-time communication, real-time override.
3. Adopt ER26500H+EPC1520 battery to realize 6 years service life.
4. Optional valve control function, can remotely open and close the valve operation.
5. Wireless communication in line with the Ministry of Telecommunications [2005] No. 423 "micropower (short distance) radio equipment, technical requirements".
6. No need for complex construction wiring, small amount of engineering, low installation costs.
7. The collection has two-way communication function, and the collector can read and receive the actual data of the meter in real time;
8. The product complies with the standard of GB/T778.1-5~2018 "Drinking cold water meter and hot water meter" of the People's Republic of China.
In line with the People's Republic of China JJG162-2019 "drinking water cold water meter regulations".
Conforms to the technical requirements of CJ/T224-2012 "Electronic Remote Transmission Water Meter".
Meet the technical requirements of CJ/T535-2018 "Internet of Things Water Meter".
9. LXS15-65 adopts rotary-wing metering structure, with high metering precision, convenient meter reading and beautiful appearance.
10. LXLC50-300 adopts detachable screw-wing metering structure, the counter is separated from the lower structure, the readings are kept clear permanently, and the replacement counter can be carried out without stopping water.
Replacement of the counter can be carried out without stopping the water supply, and the meter maintenance does not need to dismantle the meter equipment from the pipeline.
